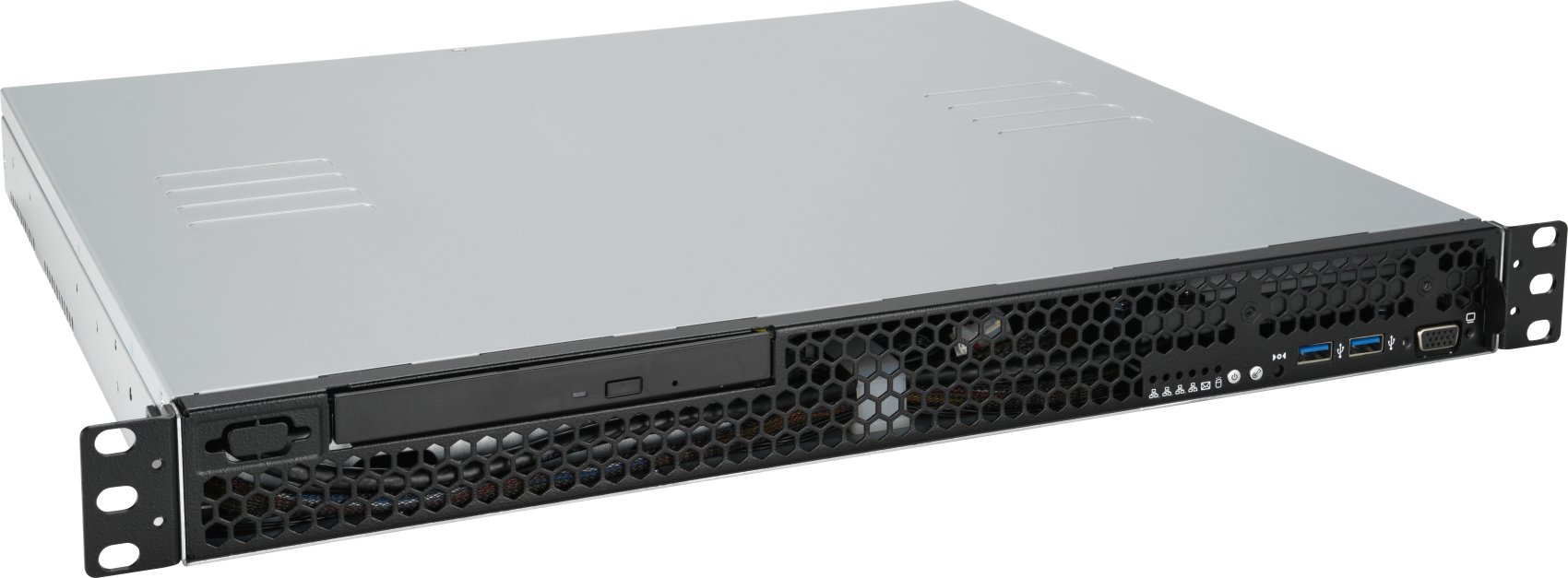

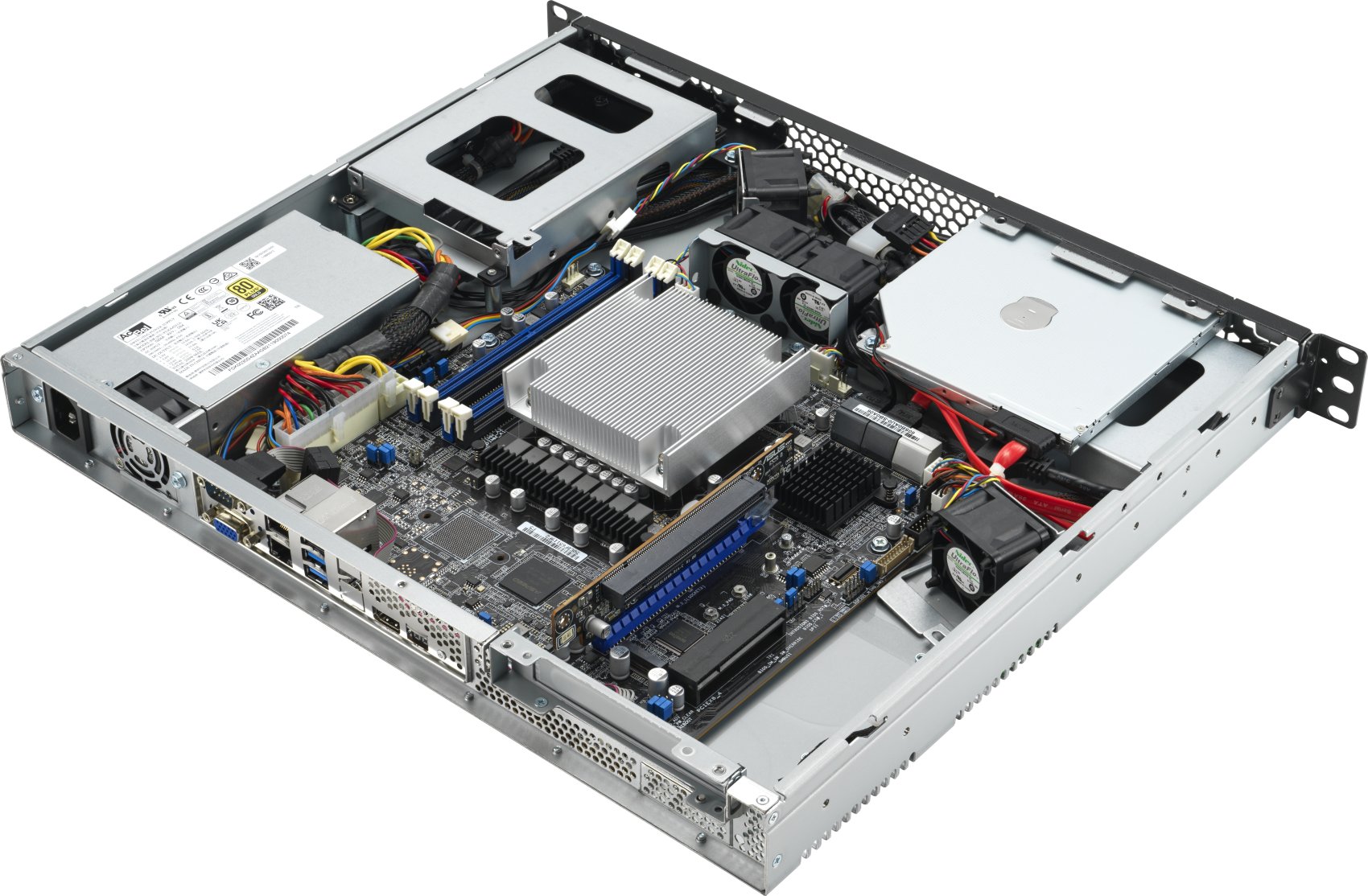

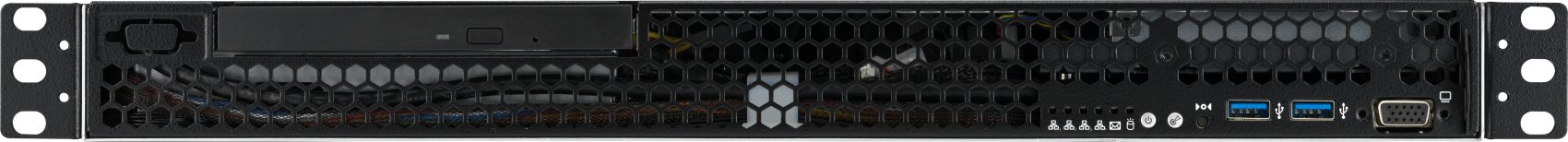

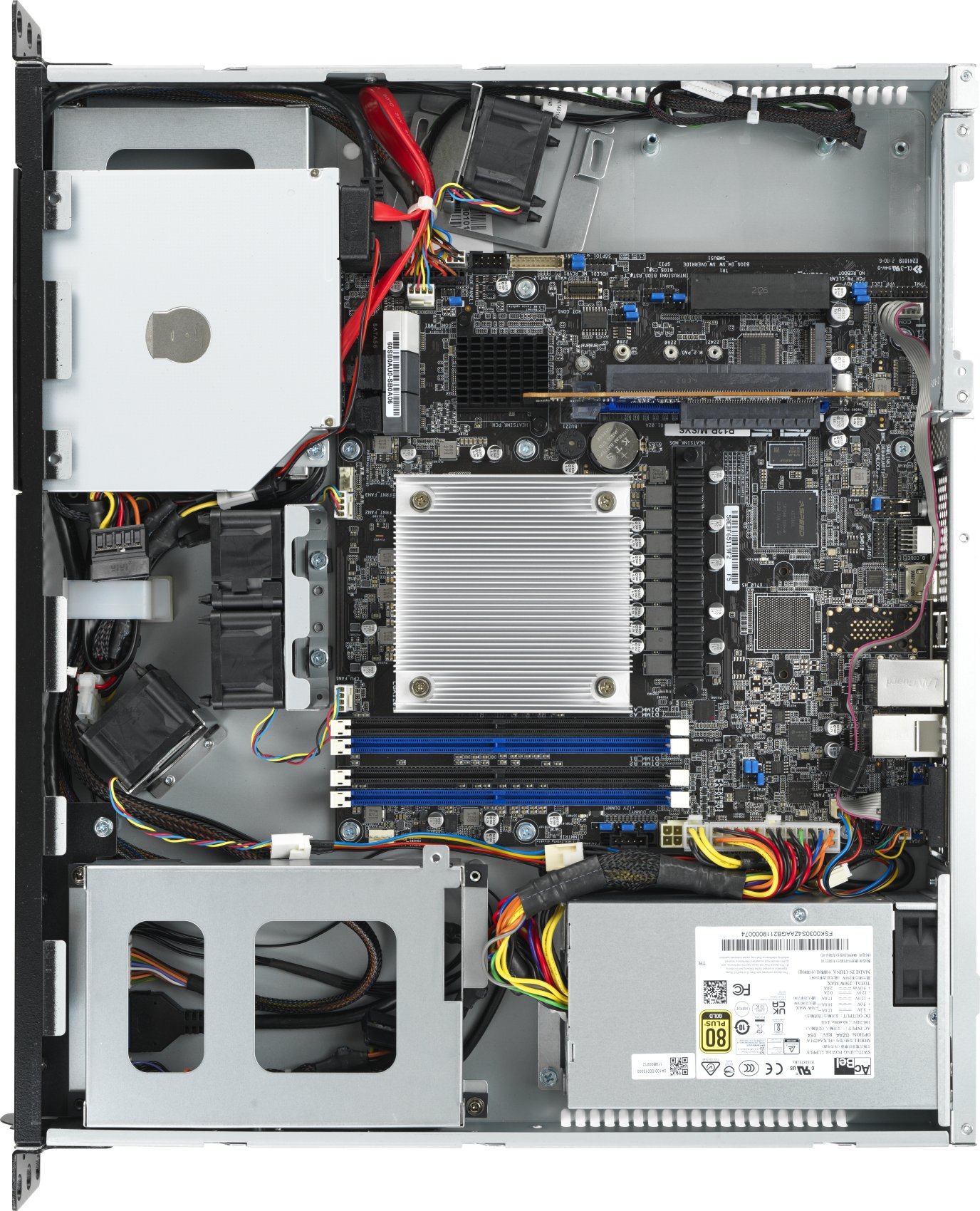

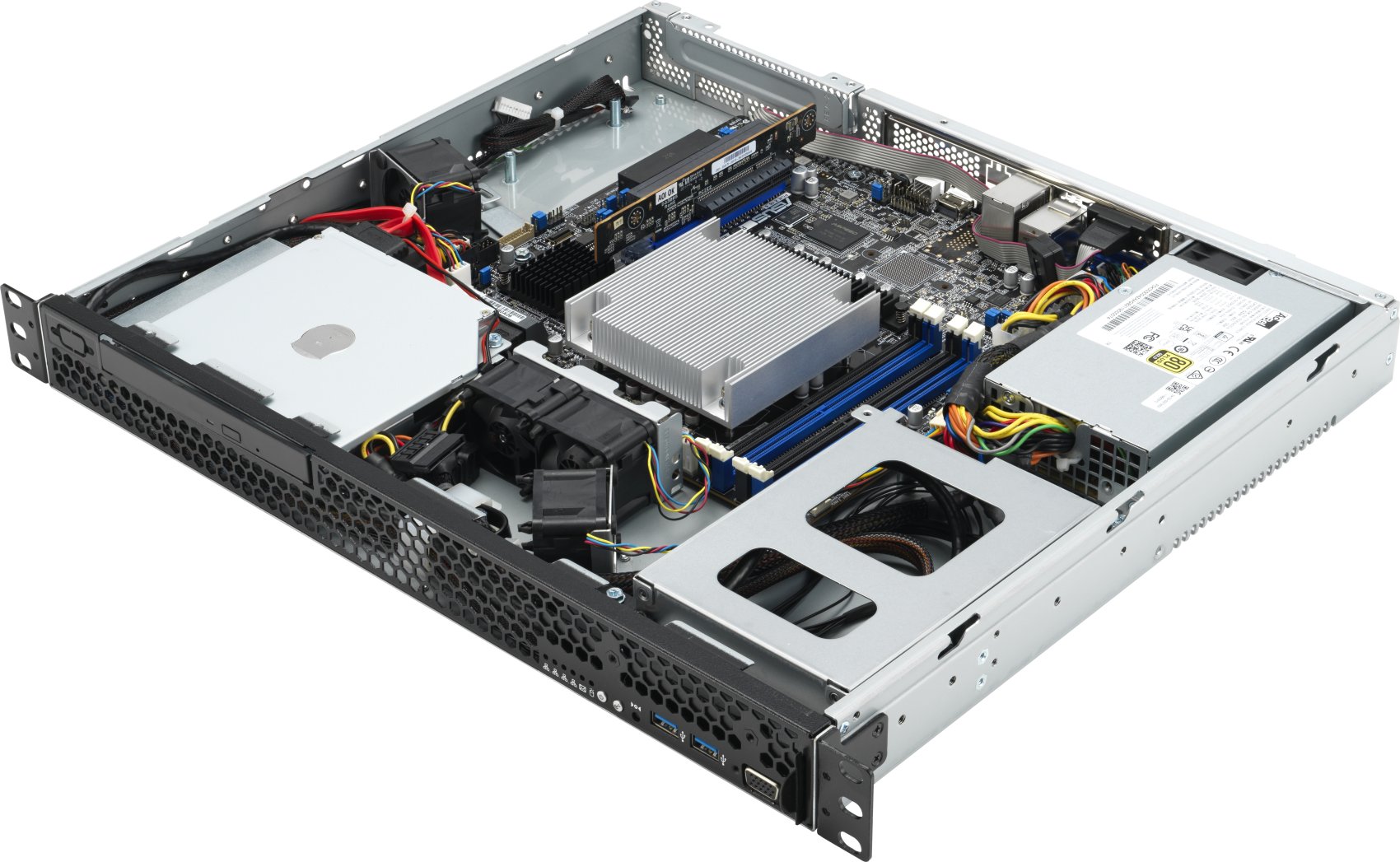

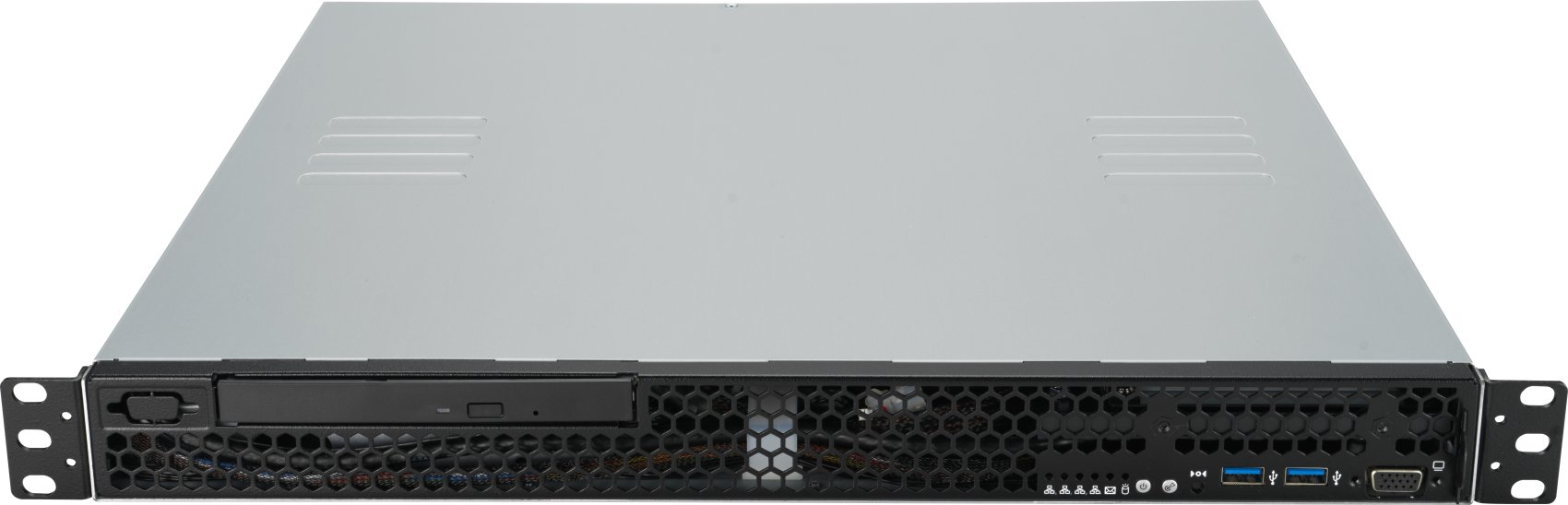

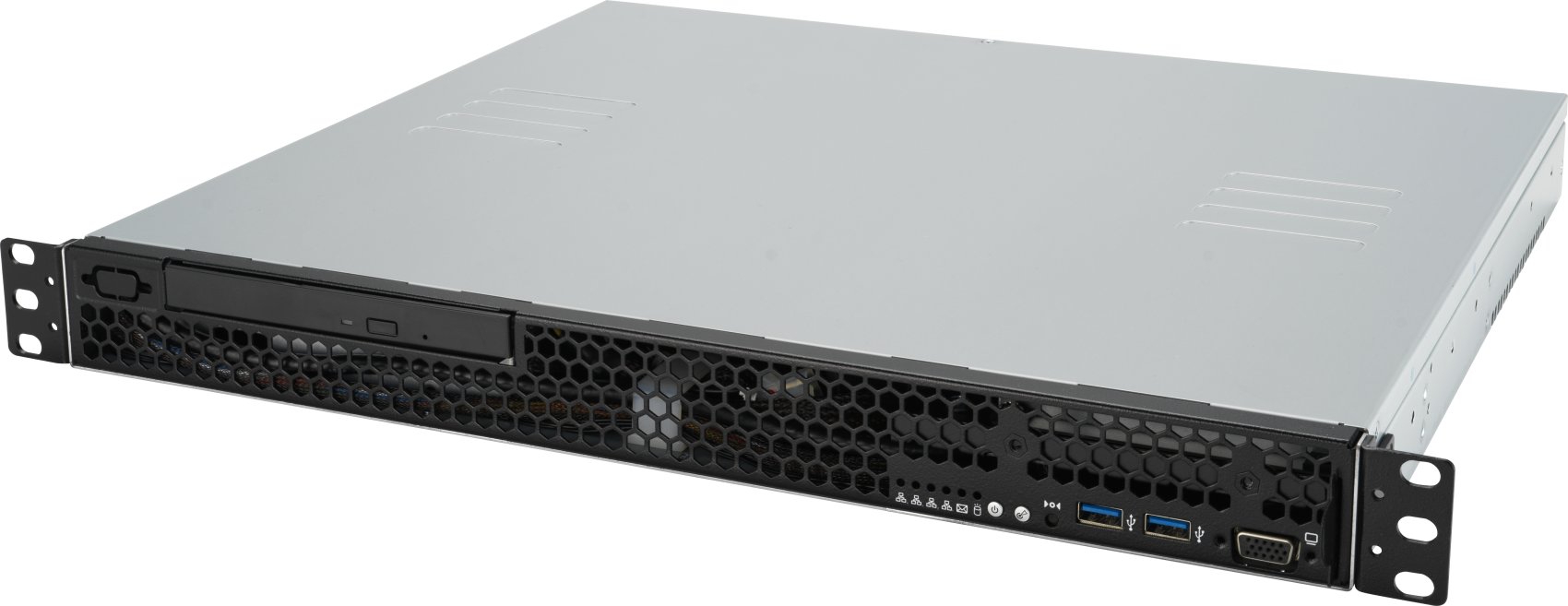

ASUS RS100-E11-PI2 Intel C252 LGA 1200 (Socket H5) Bastidor (1U) Plata
866,95 €
IGIC incluido
IGIC incluido
ANTES
871,77 €
DESCRIPCIÓN RÁPIDA
- Bastidor (1U) Intel C252 LGA 1200 (Socket H5)
- Número de procesadores soportados: 1
- Número de ranuras DIMM: 4
- Ethernet Ethernet LAN (RJ-45) cantidad de puertos: 2
- 350 W
- Plata
ASUS RS100-E11-PI2. Chipset: Intel C252, Socket de procesador: LGA 1200 (Socket H5), Fabricante de procesador: Intel. tipos de memoria compatibles: DDR4-SDRAM, Capacidades de módulo DIMM soportadas: 4GB, 8GB, 16GB, 32GB, Memoria máxima UDIMM: 128 GB. Tamaños de almacenamiento en disco soportados: 2.5,3.5,M.2, Tipos de unidades de almacenamiento admitidas: HDD & SSD, Niveles RAID: 0, 1, 5, 10. Modelo de adaptador gráfico incorporado: Aspeed AST2600, Memoria de adaptador gráfico incorporado: 64 MB. Tipo de interfaz ethernet: Ethernet rápido, Gigabit Ethernet, Ethernet LAN, velocidad de transferencia de datos: 10,100,1000 Mbit/s
CONDICION Nuevo y precintado
Modelo 90SF02P1-M00110
EAN 4711081932116
Envío GRATIS en Canarias
Características técnicas
Marca: ASUS
Nombre de producto: RS100-E11-PI2
Código del producto: 90SF02P1-M00110
Código EAN/UPC: 4711081932116
Especificaciones
Procesador
Procesador incorporado
Whether or not a processor is built into the device.
Chipset
The chipset connects the microprocessor to the rest of the motherboard.
Intel C252
Socket de procesador
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1200 (Socket H5)
Fabricante de procesador
The manufacturer that produced the processor.
Intel
Familia de procesador
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel® Xeon®
Número de procesadores soportados
The quantity of processors which can be used by the product.
1
Memoria
Número de ranuras DIMM
The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.
4
tipos de memoria compatibles
Types of memory which can be used with the product.
DDR4-SDRAM
Capacidades de módulo DIMM soportadas
4GB, 8GB, 16GB, 32GB
Memoria máxima UDIMM
128 GB
Velocidades de reloj UDIMM soportadas
2666, 3200 MHz
Canales de memoria
Doble canal
Medios de almacenaje
Tamaños de almacenamiento en disco soportados
The sizes of storage drives that can be used with the product.
2.5, 3.5, M.2
Tipos de unidades de almacenamiento admitidas
The type of storage drives the device is compatible with.
HDD & SSD
Niveles RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
0, 1, 5, 10
Factor de forma de disco SSD
The size of the solid-state drive, given in inches
M.2
Gráficos
Modelo de adaptador gráfico incorporado
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
Aspeed AST2600
Memoria de adaptador gráfico incorporado
64 MB
Conexión
Ethernet
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Tipo de interfaz ethernet
Ethernet rápido, Gigabit Ethernet
Ethernet LAN, velocidad de transferencia de datos
The different speed levels of the Ethernet LAN connection.
10, 100, 1000 Mbit/s

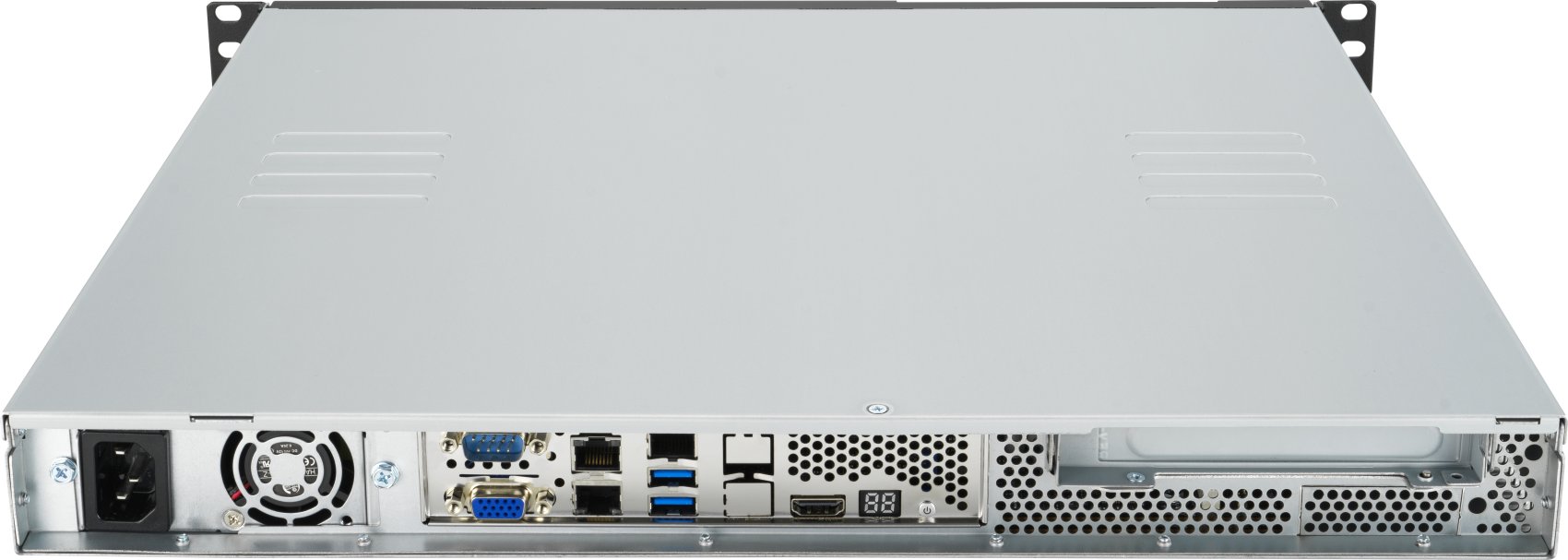

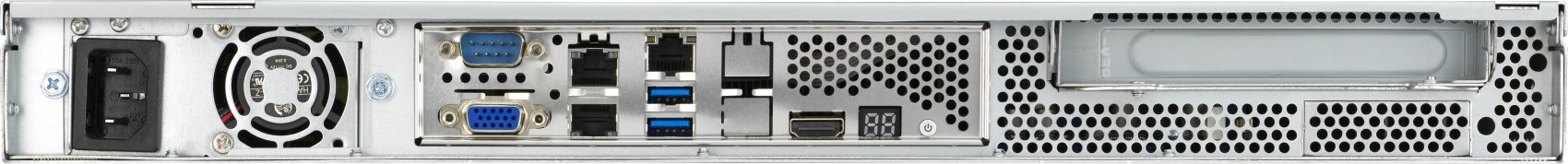

Puertos e Interfaces
Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1)
2
Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2)
2
Ethernet LAN (RJ-45) cantidad de puertos
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Puertos e Interfaces
Número de puertos HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Cantidad de puertos VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
2
Cantidad de puertos COM
1
Ranuras de expansión
Versión de entradas de PCI Express
4.0
Número de ranuras M.2 (M)
1
Diseño
Tipo de chasis
List of types of chassis available and their expandability if applicable.
Bastidor (1U)
Color del producto
El color ej. rojo, azul, verde, negro, blanco.
Plata
Indicadores LED
Interruptor de encendido/apagado integrado
The button which is pressed to switch the device on or off.
Botón de restaurar
Certificación
BSMI, CE, FCC(Class A)
Control de energía
Fuente de alimentación
The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
350 W
Certificación 80 PLUS
80 PLUS Gold
Condiciones ambientales
Intervalo de temperatura operativa
The minimum and maximum temperatures at which the product can be safely operated.
10 - 35 °C
Intervalo de temperatura de almacenaje
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Intervalo de humedad relativa durante almacenaje
20 - 90%
Peso y dimensiones
Ancho
Medidas o extensión de lado a lado.
380 mm
Profundidad
La distancia desde el frente hasta atrás.
430 mm
Altura
Altura del producto.
44 mm
Peso
Peso del producto sin embalaje (peso neto). Si es posible, se da el peso neto incluyendo los accesorios y suministros estándar. Tenga en cuenta que a veces el fabricante deja de lado el peso de los accesorios y / o suministros.
7,5 kg
Empaquetado
Peso del paquete
Peso del producto empaquetado.
11,7 kg
